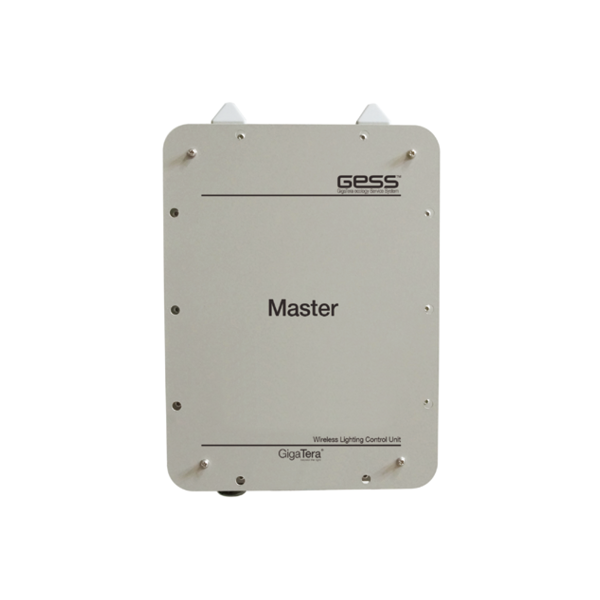

Master Unit

Home > Control System > Products > Master Unit

This device transmits the control command of the GUI operation program to the slave unit using a wired RS-485 signal.

  • For wired communications, the master unit can monitor and control a maximum of 32 slave units.
  • For wireless communications, the master unit can monitor and control a maximum of 200 lighting fixtures.

Application

Industrial high bay, Sports Lighting, High mast, Flood Light

Certifications

UL, FCC

Specifications

Item

Description

Model Name

Master

Input Voltage

AC 100~277V

Frequency

50~60Hz

Power Consumption

MAX. 1W

Communication Method

Wired (RS-485) / Wireless (Zigbee)

Data Rate

115200[bps], 8-N-1

Dimension

8.2 x 11.0 x 5.1 inch

209 x 280 x 130 mm

Weight

9.3 lb

4.2 kg

Operation Temp.

-20º ~ +50ºC
