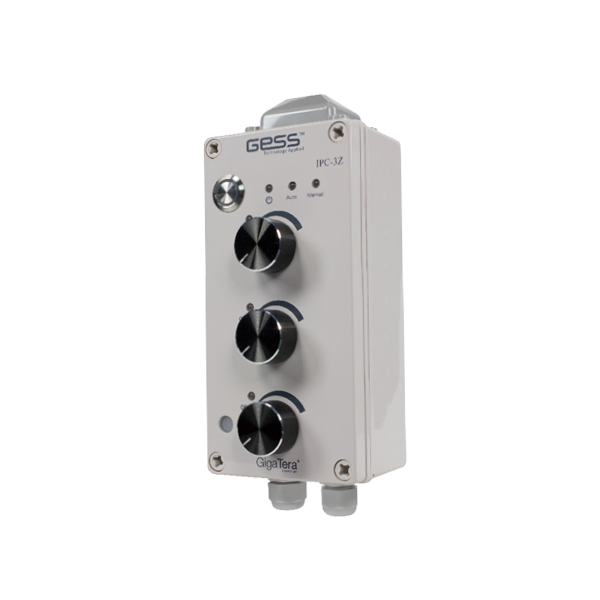

Control Wall Switch - IPC

Home > Control System > Products > Control Wall Switch - IPC

The wall-mounting switch controls each product through communication with the built-in wireless node (ZB Node) and can support both local and central controls.

  • Intelligent Power Controller
  • 1-10V brightness control
  • On/Off control for each zone and group
  • Wireless sensor network control
  • Easy group and zone settings using a remote controller
  • IPC-1Z, IPC-2Z, IPC-3Z, IPC-6Z

Application

Industrial high bay, Sports Lighting, High mast, Flood Light

Certifications

KC, CE

Specifications

Item

Description

Model Name

IPC-1Z / 2Z / 3Z

IPC-6Z

Input Voltage

AC 100~240V

AC 100~240V

Power Consumption

Max. 1W

Communication Method

RS-485 / Wireless

Data Rate

115,200[bps], 8-N-1 / Wireless 250kbps

Dimension

inch

4.1 x 10.4 x 3.9

7.1 x 12.0 x 3.9

mm

105 x 265 x 100

180 x 305 x 100

Weight

(lb)

(kg)

Operation Temp.

-20º ~ +50ºC
