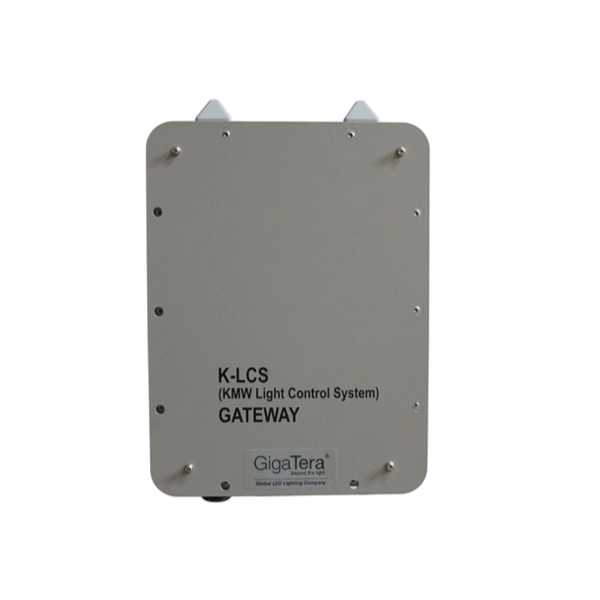

Gateway / GeSS-Server

Home > Control System > Products > Gateway / GeSS-Server

The Gateway allows communication with command between the GeSS system and node.

  • This action is carried by using 2G/3G/4G wireless connection and Ethernet.
  • Through wireless connection, the LED fixture and node can be monitored and controlled.

Application

Highway, Roadway, Street

Certifications

UL, CE, FCC, KC

Specifications

Item

Description

Model Name

K-LCS

Input Voltage

AC 100~277V

Frequency

50~60Hz

Power Consumption

Max. 3.0W

Communication Method (to LED lighting)

Wireless (Zigbee)

Communication Method (to server)

Ethernet, W-CDMA

Dimension

8.2 x 11.0 x 5.1 inch

209 x 280 x 130 mm

Weight

9.3 lb

4.2 kg

Operation Temp.

-20º ~ +50ºC
