Stand Alone Motion Sensor

Home > Control System > Products > Stand Alone Motion Sensor

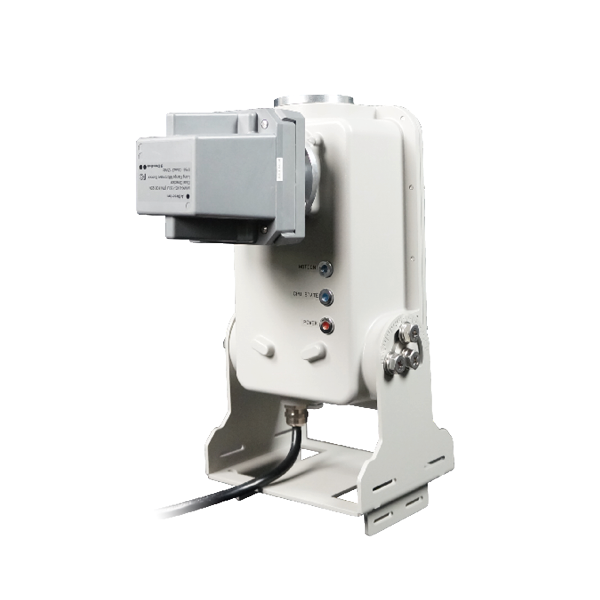

Outdoor Independent Sensor Module

  • The 10.250GHz radar is released to be used for monotonic movement detection.
  • The small form factor provides a low cost solution for many applications
  • Detection direction Single or Dual
  • Power Output/Direction +17dBM, 50mW

Application

Major Crime Area, Industrial high bay, Parking Lot

Certifications

-

Specifications

Item

Description

Model Name

GTLC-MS111

Input Voltage

AC 100~277V / AC 347~480V

Frequency

50~60Hz

Power Consumption

Max 3.0W

Communication Method

Wireless(Zigbee)

Microwave Sensor

X band, 10.250GHz

Dimension

6.5 x 12 x 9.3 (inch)

165 x 304 x 236 (mm)

Weight

7.3 (lb)

3.3 (kg)

Operation Temp.

-20º ~ +50ºC
